Horizontal Laminar Flow Cabinets

A Horizontal Laminar flow work Station is a vital concept in the control of particulate contamination. Laminar airflow is defined as air moving at the same speed and in the same direction, with no or minimal cross-over of air streams. The Horizontal Laminar Flow Workstations meet or exceed ISO 14644-1, Federal Standard 209E for ISO 3 & 5/ Class 100 air and IES Recommended Practice for Laminar Flow Clean Air Devices.

Our Horizontal Laminar Air Flow workstations are available in different sizes and these models can also be configured to meet your needs. These units feature 99.997 % HEPA filtration system or 99.999% ULPA filtration system, air intake grill and pre-filter, fluorescent lighting, centrally located control centre, vibration control system and available in optional stainless steel work-surfaces and increased work zone height.

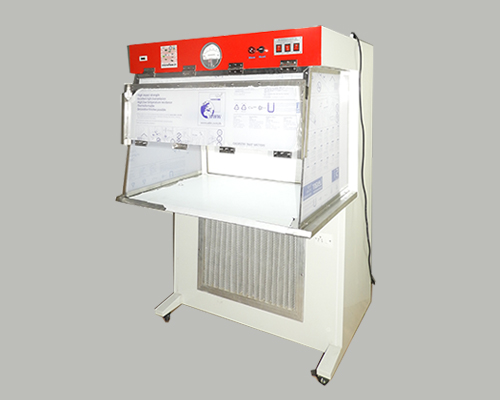

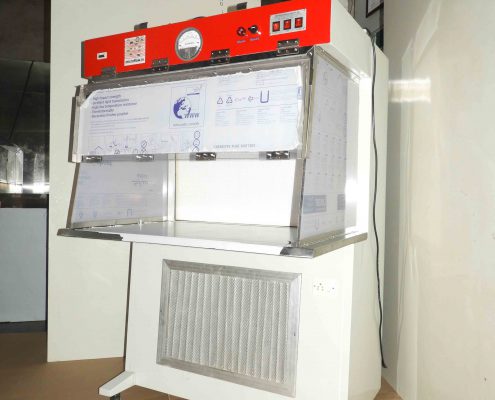

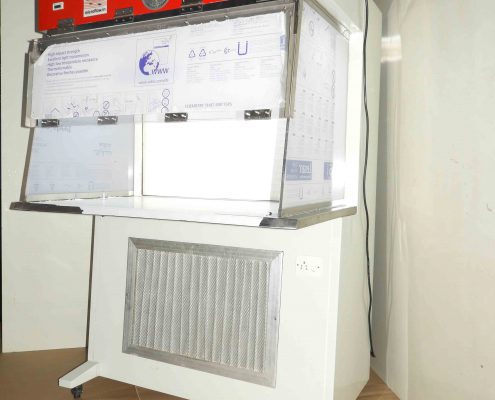

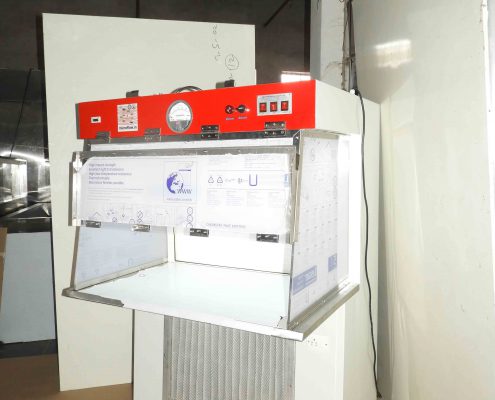

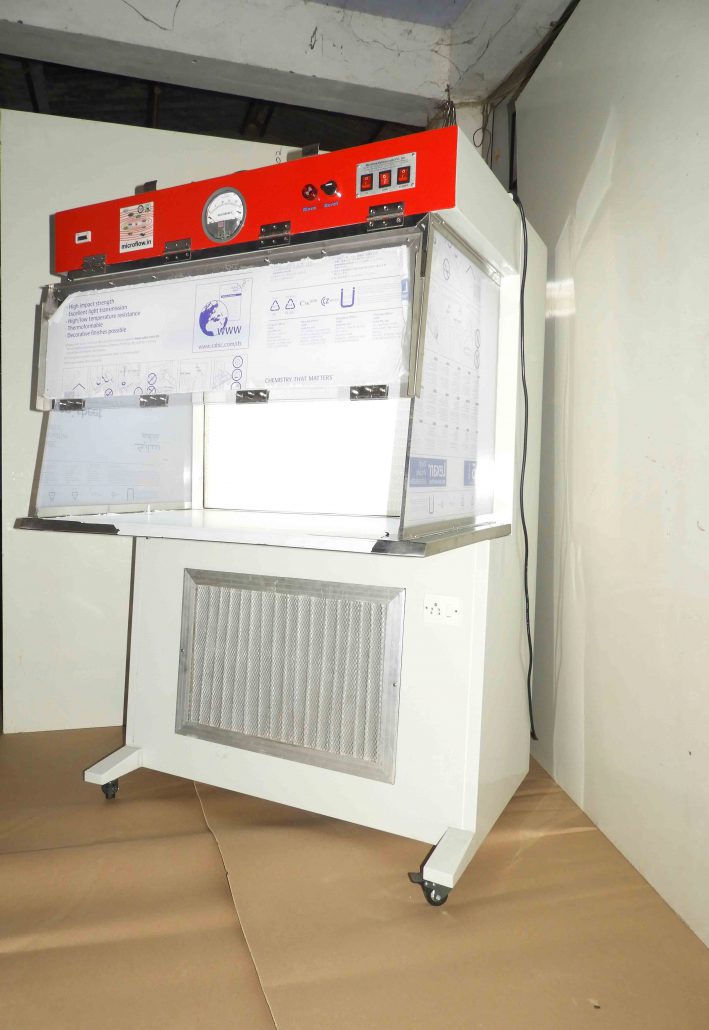

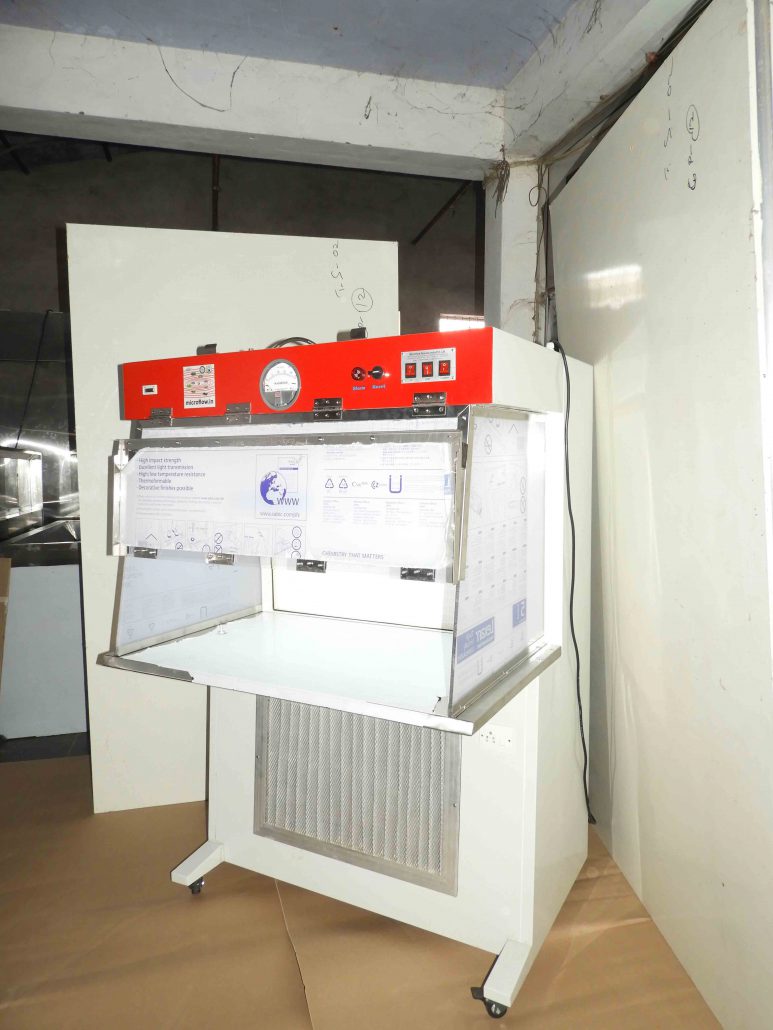

Our Gallery

Technical Features

Material of Construction (Main Body) Model No Dimensions
External (W x D x H) Internal (W x D x H)
CRCA Powder Coated
GI Powder Coated
Stainless Steel 304
MFD-V-600 750 x 900 x 1450 mm 610 x 610 x 610 mm
MFD-V-900 1050 x 900 x 1450 mm 915 x 610 x 610 mm
MFD-V-1200 1350 x 900 x 1450 mm 1220 x 610 x 610 mm
MFD-V-1800 1950 x 900 x 1450 mm 1830 x 610 x 610 mm
Units available with Microprocessor Control also for the above mentioned models
Material of Construction (Work Table) Stainless Steel 304
Average Air Velocity 90 ± 20% FPM
HEPA / ULPA Efficiency 99.997% / 99.999%
Class Level ISO 3 / 5 (Class 100)
Noise Level 65 ± 5 dB
Electrical 230 V, 50 Hz, Single Phase
Standards US FED STD 209 E, ISO 14644-1, IEST- RP-CC-002-2, BSI
Certifications CE & ISO
